300S

300S

300S is both a compact and a modular expandable system.

300S is designed for centralized and decentralized automation tasks in the manufacturing and process industry up to the highest power range.

With a central extension of up to 32 modules directly to the CPU and up to 126 fieldbus slave modules, it is deployable almost anywhere. The module size allows use in almost any automation environment.

The assembly is extremely simple. First, the backplane bus connectors for communication between the modules and the CPU are entered from behind and then the modules are individually placed and secured on the rail and screwed down.

The backplane bus connectors are supplied with the I/O modules. In the SPEED-Bus, the bus connection takes place via a SPEED-Bus terminal strip (PCB) integrated in the profile rail. The SPEED-Bus modules are mounted on the left of the CPU - depending on bus length 2, 6 or 10 SPEED-Bus modules can be deployed.

Performance and Application

300S is designed for centralized and decentralized automation tasks. The integrated SPEED7 ASIC system 300S is among the world's fastest auto- mation systems. A wide range of CPU options makes the system universally deployable. The selection ranges from C-class CPUs with integrated I/O peripherals for smaller applications up to CPU versions with built-in Ethernet, fieldbus master interfaces, and High-Speed-Bus.

The CPU versions with integrated SPEED-Bus have been especially developed for automation tasks with very high demands on performance. Furthermore special high-speed modules for communication and for digital as well as analog signal processing are available.

Programming

300S is programmed with VIPA WinPLC7 or with Siemens STEP7 in LAD, FBD and STL or with Siemens TIA Portal .

Memory

The CPUs in 300S have the work and load memory already integrated. Depending on the CPU variant different work memory are available for the user. The work and load memory can be adapted to the needs of memory card by plugging in an MCC memory expansion card. To back up program and data standard MMC cards are also supported.

Functions

For the connection of sensors and actuators, a variety of signal modules are available for recording digital and analog signals into and out of the process is available - also as high-speed modules for SPEED-Bus.

Measurements and the control of pressures, temperatures, flow rates and levels are realized at the highest level with the measurement and control modules.

Communication

An Ethernet programming interface is integrated on all CPUs in system 300S. Ethernet communication processors link 300S horizontally and vertically into network structures. Therefore, all relevant data are made available to the connected host systems.

300S offers fieldbus master and slave modules with different fieldbus protocols and can act as a master controller or as a subordinate fieldbus slave unit.

Multi-master applications with very high performance of communication can be implemented via the fieldbus master module for SPEED-Bus.

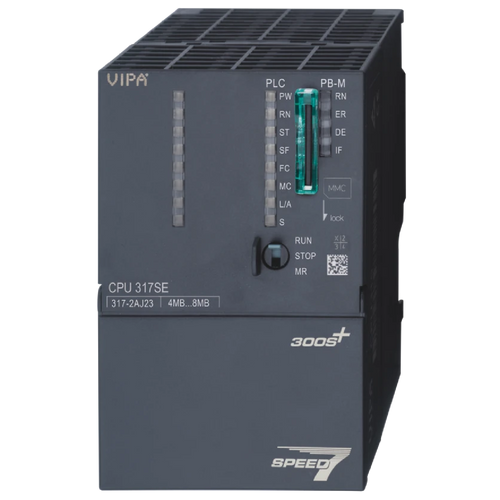

Standard CPU

300S Standard CPUs feature a integrated Ethernet PG/OP port and Profibus Functionality.

Compact CPU

300S Compact CPUs feature a integrated Ethernet PG/OP port and integrated I/O.

Ethernet CPU

300S Ethernet CPUs feature a integrated Ethernet PG/OP port and EtherCAT, Profinet IO or Open TCP functionality.

Digital I/O

300S Digital IO Modules are the perfect compliment to your VIPA 300S CPU and are even compatible with Siemens S7-300 CPUs.

Analog I/O

300S Analog IO Modules offer a wide variety of Analog IO signal compatibility and are even compatible with Siemens S7-300 CPUs.

Interface Modules

The 300S Interface Module turns any 300S rack into a Profibus-DP Slave.

Power Supplies

300S Power Supplies in a wide variety of amperage capabilities.

Communication Processors

The easiest way to add additional communication capabilities to your VIPA 300S CPU.

Extended Memory

Most VIPA 300S CPUs can have their work memory doubled using these easy to use Memory Configuration Cards.

Accessories

DIN Rail, Front Connectors and other Accessories for your VIPA 300S System.
